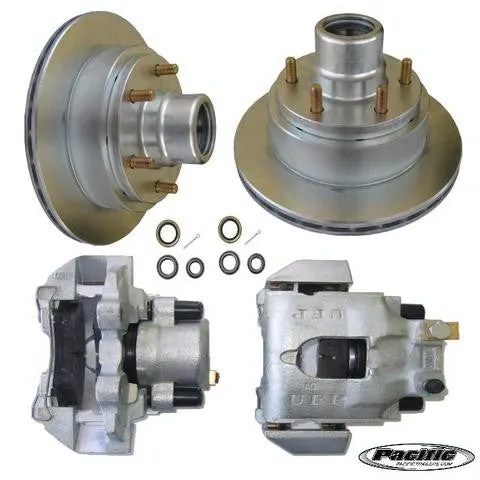

UFP DB-35, 6-Lug Disc Brake Unit with ALUMINUM Calipers #UKIT26

UFP (Unique Functional Products) DB-35 6 on 5.5" Lug Pattern Disc Brake Kit. Vented Rotor/Hub assembly, and
Zinc Plating offers the best value of protection for salt water applications (i.e., during a standard salt spray test, rust will begin forming between 400 and 600 hours).

Fits 15” and larger wheels.  Caliper is loaded standard with non-metallic organic friction pads.

ROTOR DIAMETER: 11.75" VENTED
REPLACES DRUM DIAMETER: 12"
BEARING SIZE: 1-3/4" # 25580 x 1-1/4" #67048 (Included)
GREASE SEAL I.D. 2.25"
STUDS: 6-lug wheel bolt pattern, 1/2" wheel studs
BOLT PATTERN: 6 on 5 1/2" (15" & Larger Wheels)
AXLE CAPACITY: 5200 lbs. Kit includes: 6-lug disc brake rotors with races pressed in, inner/outer bearings, grease seal, stainless steel bearing protector caps, lug nuts, cotter pins, and completed calipers with mounting hardware,
